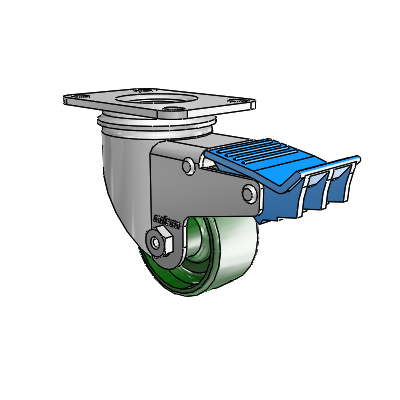

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 2.5 x 1.25 Green Cast Iron Wheel and Directional Lock Brake
2 Series Casters Top Plate Swivel Zinc Swivel Caster with 2.5 x 1.25 Green Cast Iron Wheel and Directional Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 2.5 x 1.25 Green Cast Iron Wheel and Directional Lock Brake

View CAD
SKU: 2.02156.12
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Directional Lock
Finish Zinc
Wheel Diameter 2.5
Tread Width 1.25
Wheel Type Cast Iron
Tread Detail Enameled Cast Iron
Wheel Color Green
Bearing Type Sleeve
Fastening Type Top Plate Swivel
Fastening Size 3-5/8'' x 2-1/2'' (Standard)
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 200
Mount Height 3.875
Swivel Radius 4.1875
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness Brinell 145
Wheel Material Cast Iron
Wheel Category Metal
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
