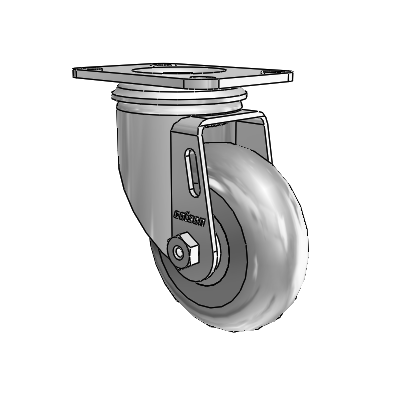

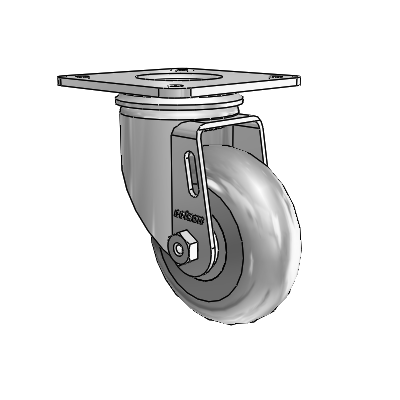

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 3.5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel
2 Series Casters Top Plate Swivel Zinc Swivel Caster with 3.5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel

Colson

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 3.5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel

View CAD
SKU: 2.03256.561
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Finish Zinc
Wheel Diameter 3.5
Tread Width 1.3125
Wheel Type Performa Rubber (Round)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Delrin
Fastening Type Top Plate Swivel
Fastening Size 3-5/8'' x 2-1/2'' (Standard)
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 210
Mount Height 4.6875
Swivel Radius 2.9063
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
