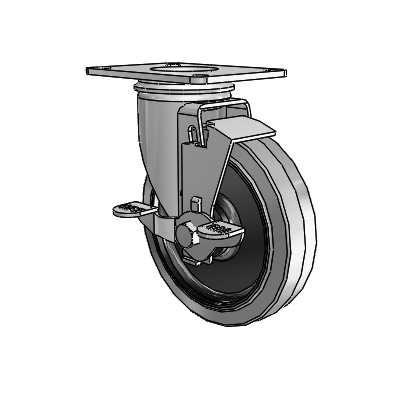

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake
2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

View CAD
SKU: 2.05256.445 COND MTG59 BRK1 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.25
Wheel Type Performa Rubber (Flat/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/8'' x 3-1/8'' (MTG59)
Bolt Hole Spacing 2-3/8" x 3-3/8" to 3-1/2"
Mounting Bolt Diameter 5/16"
Capacity 250
Mount Height 6.1875
Swivel Radius 3.9375
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
Has Brake Yes
SKU 2.05256.445 COND MTG59 BRK1 FSI
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
