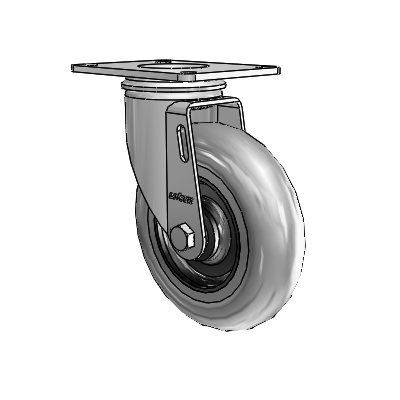

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel
2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel

Colson

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel

View CAD
SKU: 2.05256.565 COND MTG59 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Finish Zinc
Wheel Diameter 5
Tread Width 1.3125
Wheel Type Performa Rubber (Round/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/8'' x 3-1/8'' (MTG59)
Bolt Hole Spacing 2-3/8" x 3-3/8" to 3-1/2"
Mounting Bolt Diameter 5/16"
Capacity 250
Mount Height 6.1875
Swivel Radius 3.8125
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
SKU 2.05256.565 COND MTG59 FSI
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
