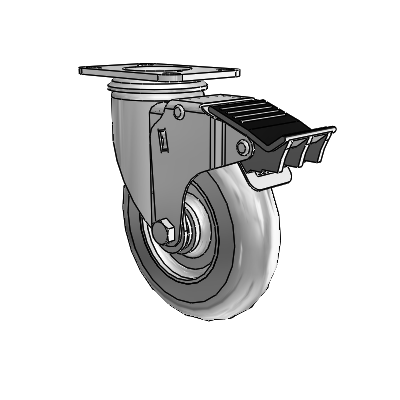

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel and Total Lock Brake
2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel and Total Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel and Total Lock Brake

View CAD
SKU: 2.05256.561 BRK5 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Total Lock (BRK5)
Finish Zinc
Wheel Diameter 5
Tread Width 1.3125
Wheel Type Performa Rubber (Round)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Delrin
Fastening Type Top Plate Swivel
Fastening Size 3-5/8'' x 2-1/2'' (Standard)
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 250
Mount Height 6.1875
Swivel Radius 4.75
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
