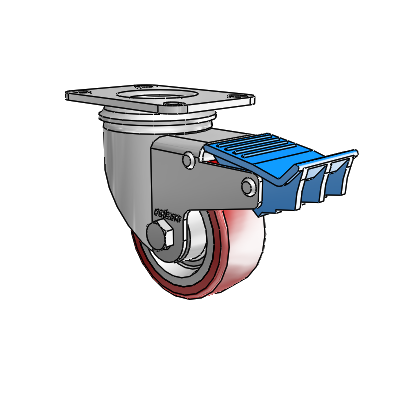

2 Series Casters Top Plate Swivel Zinc with 3 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Directional Lock Brake
2 Series Casters Top Plate Swivel Zinc with 3 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Directional Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc with 3 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Directional Lock Brake

View CAD
SKU: 2.03156.92
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Directional Lock
Finish Zinc
Wheel Diameter 3
Tread Width 1.25
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Plain Bearing
Fastening Type Top Plate Swivel
Fastening Size 3-5/8'' x 2-1/2'' (Standard)
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 200
Mount Height 4.125
Swivel Radius 4.1875
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 45(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
