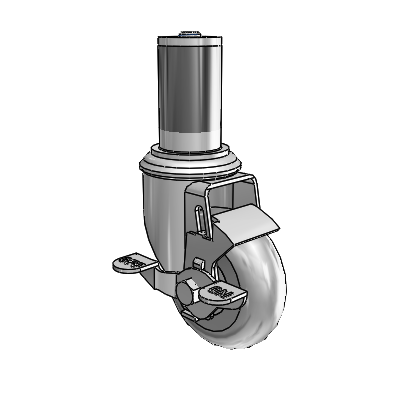

2 Series Expanding Adapter Stem Zinc Swivel Caster with 3.5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel Top Lock (BRK1)
2 Series Expanding Adapter Stem Zinc Swivel Caster with 3.5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel Top Lock (BRK1)

Colson

2 Series Expanding Adapter Stem Zinc Swivel Caster with 3.5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel Top Lock (BRK1)

View CAD
SKU: 2.03267.565 BRK1 MTG46 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 3.5
Tread Width 1.3125
Wheel Type Performa Rubber (Round)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Ball
Fastening Type Expanding Adapter Stem
Fastening Size 1/2"-13UNC x 2-13/16"
Capacity 210
Mount Height 4.5625
Swivel Radius 3.625
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
