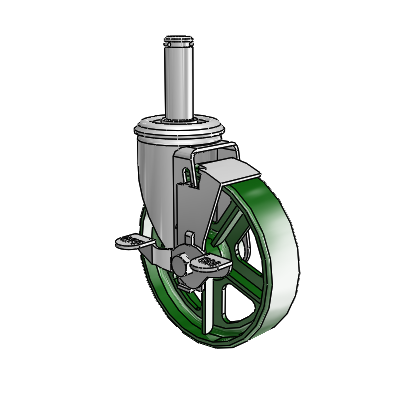

2 Series Grip Ring Stem Zinc Swivel Caster Caster with 5 x 1.25 Green Cast Iron Wheel and Top Lock Brake
2 Series Grip Ring Stem Zinc Swivel Caster Caster with 5 x 1.25 Green Cast Iron Wheel and Top Lock Brake

Colson

2 Series Grip Ring Stem Zinc Swivel Caster Caster with 5 x 1.25 Green Cast Iron Wheel and Top Lock Brake

View CAD
SKU: 2.05251.12 MTG5 BRK1
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.25
Wheel Type Cast Iron
Tread Detail Enameled Cast Iron
Wheel Color Green
Bearing Type Sleeve
Fastening Type Grip Ring Stem
Fastening Size 3/4" x 2-3/16" (MTG5)
Capacity 300
Mount Height 6.0625
Swivel Radius 3.9375
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness Brinell 145
Wheel Material Cast Iron
Wheel Category Metal
Has Brake Yes
SKU 2.05251.12 MTG5 BRK1
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
