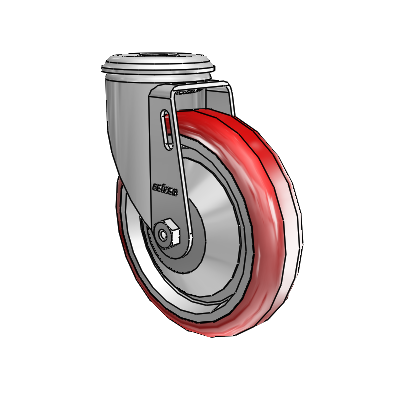

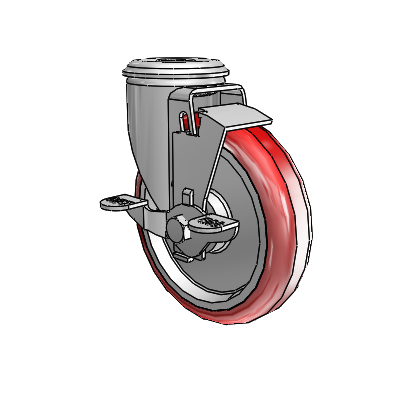

2 Series Modular Stem Zinc Swivel Caster Caster with 5 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake
2 Series Modular Stem Zinc Swivel Caster Caster with 5 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

Colson

2 Series Modular Stem Zinc Swivel Caster Caster with 5 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

View CAD
SKU: 2.05250.91 BRK1 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.25
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Delrin
Fastening Type Modular Stem
Fastening Size 1/2'' Hollow Rivet
Capacity 300
Mount Height 6.0625
Swivel Radius 3.9375
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 45(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
