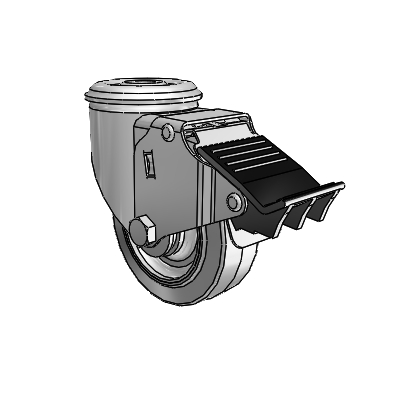

2 Series Modular Stem Zinc Swivel Caster with 3.5 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Total Lock Brake
2 Series Modular Stem Zinc Swivel Caster with 3.5 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Total Lock Brake

Colson

2 Series Modular Stem Zinc Swivel Caster with 3.5 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Total Lock Brake

View CAD
SKU: 2.03250.445 BRK5 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Total Lock (BRK5)
Finish Zinc
Wheel Diameter 3.5
Tread Width 1.25
Wheel Type Performa Rubber (Flat)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Ball
Fastening Type Modular Stem
Fastening Size 1/2'' Hollow Rivet
Capacity 250
Mount Height 4.5625
Swivel Radius 4.75
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
