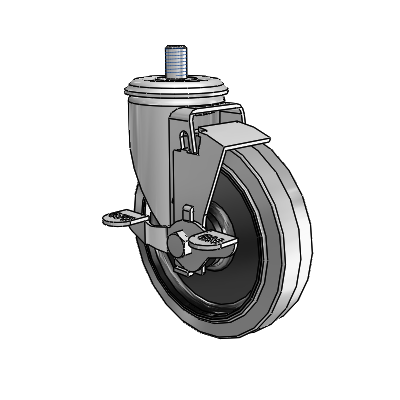

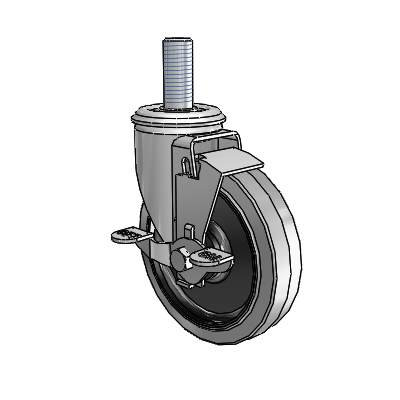

2 Series Pipe Thread Stem Zinc Swivel Caster Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake
2 Series Pipe Thread Stem Zinc Swivel Caster Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

Colson

2 Series Pipe Thread Stem Zinc Swivel Caster Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

View CAD
SKU: 2.05253.445 COND BRK1
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.25
Wheel Type Performa Rubber (Flat/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Pipe Thread Stem
Fastening Size 1-1/16" Diameter, fits 3/4" NPT
Capacity 250
Mount Height 6.3125
Swivel Radius 3.9375
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
Has Brake Yes
