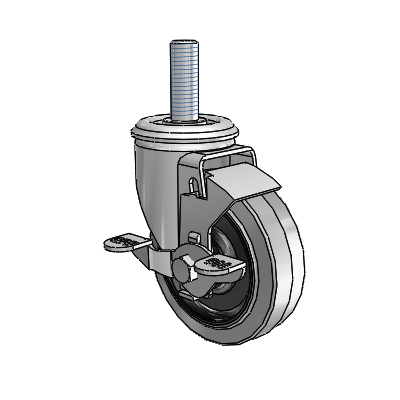

2 Series Pipe Thread Stem Zinc Swivel Caster with 4 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake
2 Series Pipe Thread Stem Zinc Swivel Caster with 4 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

Colson

2 Series Pipe Thread Stem Zinc Swivel Caster with 4 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

View CAD
SKU: 2.04253.445 COND BRK1
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 4
Tread Width 1.25
Wheel Type Performa Rubber (Flat/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Pipe Thread Stem
Fastening Size 1-1/16" Diameter, fits 3/4" NPT
Capacity 250
Mount Height 5.25
Swivel Radius 3.6875
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
