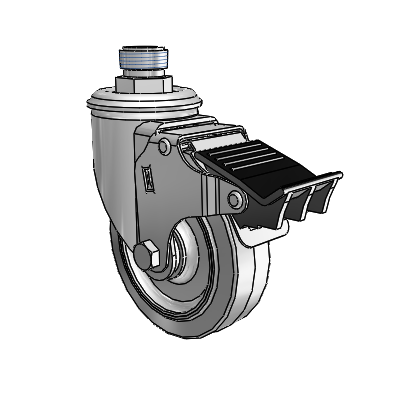

2 Series Pipe Thread Stem Zinc Swivel Caster with 4 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Total Lock Brake
2 Series Pipe Thread Stem Zinc Swivel Caster with 4 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Total Lock Brake

Colson

2 Series Pipe Thread Stem Zinc Swivel Caster with 4 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Total Lock Brake

View CAD
SKU: 2.04253.441 BRK5 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Total Lock (BRK5)
Finish Zinc
Wheel Diameter 4
Tread Width 1.25
Wheel Type Performa Rubber (Flat)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Delrin
Fastening Type Pipe Thread Stem
Fastening Size 1-1/16" Diameter, fits 3/4" NPT
Capacity 300
Mount Height 5.25
Swivel Radius 4.75
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
