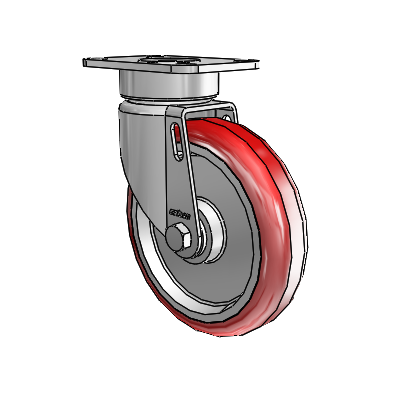

2 Series Stainless Steel Precision Top Plate Swivel Caster with 5 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel
2 Series Stainless Steel Precision Top Plate Swivel Caster with 5 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel

Colson

2 Series Stainless Steel Precision Top Plate Swivel Caster with 5 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel

View CAD
SKU: 2.X5456.944
Hurry up! Current stock:
Technical Data
Series 2 Series Stainless Steel Precision Casters
Caster Type Swivel
Finish Stainless Steel
Wheel Diameter 5
Tread Width 1.25
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Delrin
Fastening Type Top Plate Swivel
Fastening Size 3 5/8'' x 2 1/2''
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 275
Mount Height 6.1875
Swivel Radius 3.8125
Wheel Face Crowned Tread
Temperature Range -45F to +180F
Hardness 45(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
