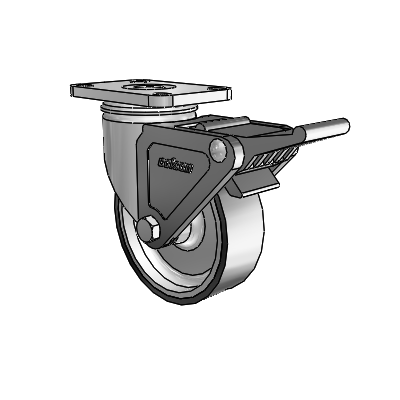

2 Series Stainless Steel Top Plate Swivel Caster with 4 x 1.25 Black on Silver ThermoTech Wheel and Tech Lock (BRK2)
2 Series Stainless Steel Top Plate Swivel Caster with 4 x 1.25 Black on Silver ThermoTech Wheel and Tech Lock (BRK2)

Colson

2 Series Stainless Steel Top Plate Swivel Caster with 4 x 1.25 Black on Silver ThermoTech Wheel and Tech Lock (BRK2)

View CAD
SKU: 2.04456.613 H BRK2
Hurry up! Current stock:
Technical Data
Series 2 Series Stainless Steel Casters
Caster Type Swivel
Brake Type Tech Lock (BRK2)
Finish Stainless Steel
Wheel Diameter 4
Tread Width 1.25
Wheel Type ThermoTech
Tread Detail Rubber
Core Detail Aluminum
Wheel Color Black on Silver
Bearing Type Teflon
Fastening Type Top Plate Swivel
Fastening Size 3 5/8" x 2 1/2"
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 250
Mount Height 5.125
Swivel Radius 5.625
Wheel Face Flat Tread
Temperature Range -45F to +490F
Hardness 75(+/-5) Shore A
Wheel Material High-Temp Moldon Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
