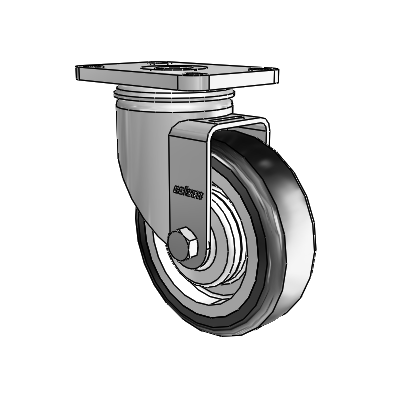

2 Series Stainless Steel Top Plate Swivel Caster with 4 x 1.25 Grey on Grey TPE High-Temp Wheel
2 Series Stainless Steel Top Plate Swivel Caster with 4 x 1.25 Grey on Grey TPE High-Temp Wheel

Colson

2 Series Stainless Steel Top Plate Swivel Caster with 4 x 1.25 Grey on Grey TPE High-Temp Wheel

View CAD
SKU: 2.04456.414 H
Hurry up! Current stock:
Technical Data
Series 2 Series Stainless Steel Casters
Caster Type Swivel
Finish Stainless Steel
Wheel Diameter 4
Tread Width 1.25
Wheel Type TPE High-Temp
Tread Detail Thermoplastic Elastomer
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 3 5/8" x 2 1/2"
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 250
Mount Height 5.125
Swivel Radius 3.3125
Wheel Face Flat Tread
Temperature Range -40F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Temp Elastomer
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
