THE EXPERT IN MOBILITY SOLUTIONS
11

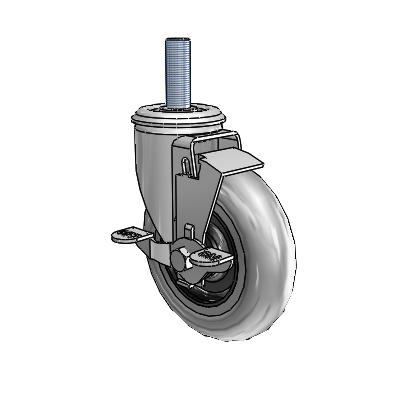

2 Series Threaded Stem Zinc Swivel Caster Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel and Top Lock Brake
2 Series Threaded Stem Zinc Swivel Caster Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel and Top Lock Brake

Colson

2 Series Threaded Stem Zinc Swivel Caster Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel and Top Lock Brake

View CAD
SKU: 2.05254.565 COND MTG14 BRK1 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.3125
Wheel Type Performa Rubber (Round/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Threaded Stem
Fastening Size 5/8"-18UNF x 1-3/4" (MTG14)
Capacity 250
Mount Height 6.0625
Swivel Radius 3.9375
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
