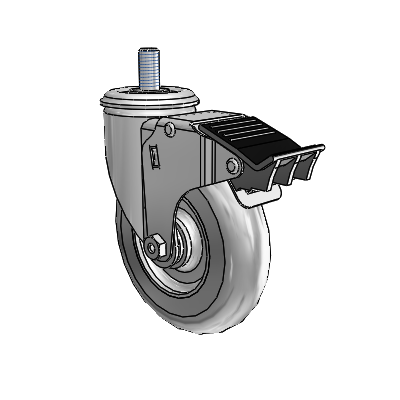

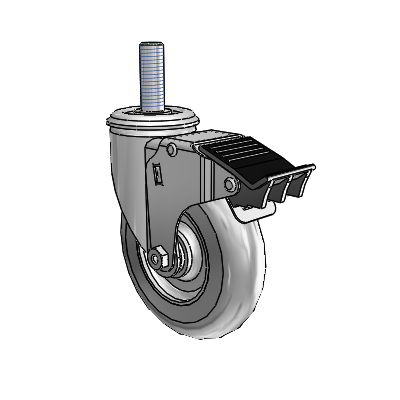

2 Series Threaded Stem Zinc Swivel Caster Caster with 5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel and Total Lock Brake
2 Series Threaded Stem Zinc Swivel Caster Caster with 5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel and Total Lock Brake

Colson

2 Series Threaded Stem Zinc Swivel Caster Caster with 5 x 1.3125 Grey on Grey Performa Rubber (Round) Wheel and Total Lock Brake

View CAD
SKU: 2.05254.565 MTG12 BRK5
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Total Lock (BRK5)
Finish Zinc
Wheel Diameter 5
Tread Width 1.3125
Wheel Type Performa Rubber (Round)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Ball
Fastening Type Threaded Stem
Fastening Size 1/2"-20UNF x 3/4" (MTG12)
Capacity 250
Mount Height 6.0625
Swivel Radius 4.75
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
