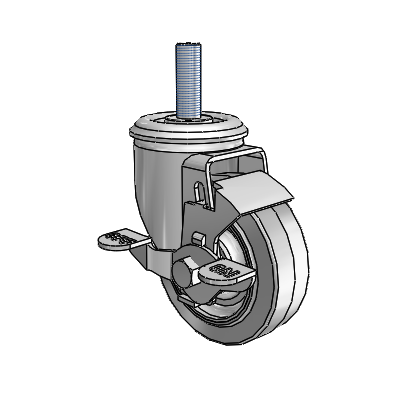

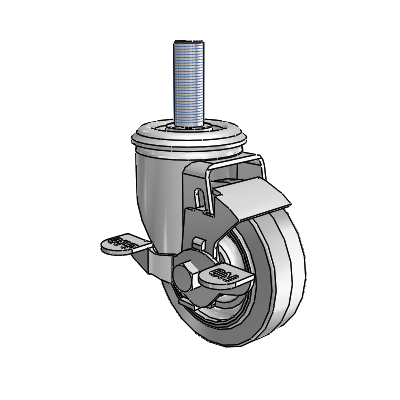

2 Series Threaded Stem Zinc Swivel Caster with 3.5 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Top Lock Brake
2 Series Threaded Stem Zinc Swivel Caster with 3.5 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Top Lock Brake

Colson

2 Series Threaded Stem Zinc Swivel Caster with 3.5 x 1.25 Grey on Grey Performa Rubber (Flat) Wheel and Top Lock Brake

View CAD
SKU: 2.03254.441 MTG50 BRK1 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 3.5
Tread Width 1.25
Wheel Type Performa Rubber (Flat)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Delrin
Fastening Type Threaded Stem
Fastening Size 1/2"-20UNF x 1-1/2" (MTG50)
Capacity 250
Mount Height 4.5625
Swivel Radius 3.625
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
