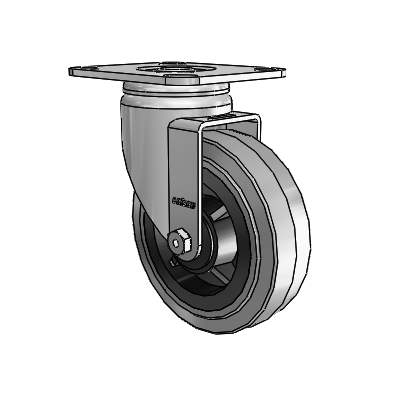

3 Series Casters Top Plate Swivel Zinc with 5 x 1.5 Grey on Black Performa Rubber (Flat/Conductive) Wheel
3 Series Casters Top Plate Swivel Zinc with 5 x 1.5 Grey on Black Performa Rubber (Flat/Conductive) Wheel

Colson

3 Series Casters Top Plate Swivel Zinc with 5 x 1.5 Grey on Black Performa Rubber (Flat/Conductive) Wheel

View CAD
SKU: 3.00517.44 COND9
Hurry up! Current stock:
Technical Data
Series 3 Series Casters
Caster Type Swivel
Finish Zinc
Wheel Diameter 5
Tread Width 1.5
Wheel Type Performa Rubber (Flat/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 4-3/8'' x 3-3/4''
Bolt Hole Spacing 2-5/3" to 3" x 3" to 3-5/8"
Mounting Bolt Diameter 3/8"
Capacity 280
Mount Height 6.375
Swivel Radius 4.125
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
