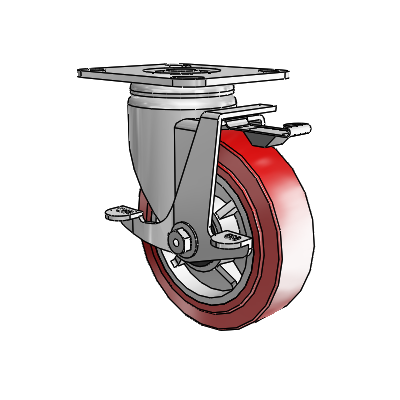

3 Series Casters Top Plate Swivel Zinc with 5 x 1.5 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake
3 Series Casters Top Plate Swivel Zinc with 5 x 1.5 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

Colson

3 Series Casters Top Plate Swivel Zinc with 5 x 1.5 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

View CAD
SKU: 3.00517.909 BRK1
Hurry up! Current stock:
Technical Data
Series 3 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.5
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 4-3/8'' x 3-3/4''
Bolt Hole Spacing 2-5/3" to 3" x 3" to 3-5/8"
Mounting Bolt Diameter 3/8"
Capacity 400
Mount Height 6.375
Swivel Radius 4.125
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 55(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
