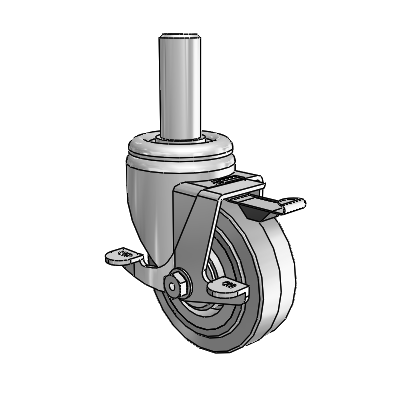

3 Series Round Stem Zinc Swivel Caster with 4 x 1.5 Grey on Grey Performa Rubber (Flat/Grey) Wheel and Top Lock Brake
3 Series Round Stem Zinc Swivel Caster with 4 x 1.5 Grey on Grey Performa Rubber (Flat/Grey) Wheel and Top Lock Brake

Colson

3 Series Round Stem Zinc Swivel Caster with 4 x 1.5 Grey on Grey Performa Rubber (Flat/Grey) Wheel and Top Lock Brake

View CAD
SKU: 3.00414.449 MTG7 BRK1
Hurry up! Current stock:
Technical Data
Series 3 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 4
Tread Width 1.5
Wheel Type Performa Rubber (Flat/Grey)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Roller Bearing
Fastening Type Round Stem
Fastening Size 3/4" x 2-1/2" (MTG7)
Capacity 325
Mount Height 5.1875
Swivel Radius 3.8125
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 65(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
