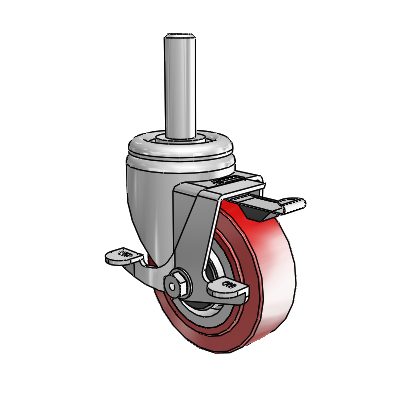

3 Series Round Stem Zinc Swivel Caster with 4 x 1.5 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake
3 Series Round Stem Zinc Swivel Caster with 4 x 1.5 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

Colson

3 Series Round Stem Zinc Swivel Caster with 4 x 1.5 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

View CAD
SKU: 3.00414.909 MTG9 BRK1
Hurry up! Current stock:
Technical Data
Series 3 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 4
Tread Width 1.5
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Roller Bearing
Fastening Type Round Stem
Fastening Size 7/8" x 2-1/2" (MTG9)
Capacity 400
Mount Height 5.1875
Swivel Radius 3.8125
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 55(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
