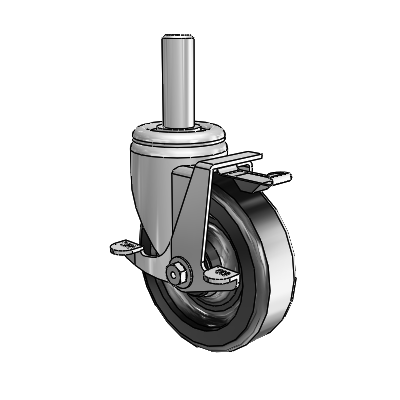

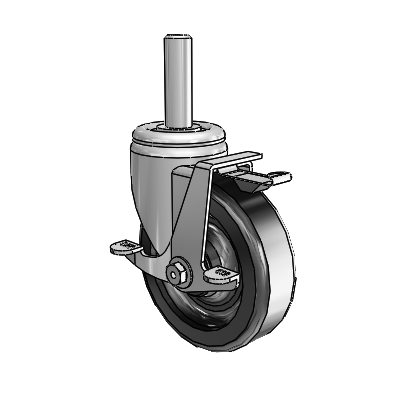

3 Series Round Stem Zinc Swivel Caster with 5 x 1.5 Black Phenolic Wheel and Top Lock Brake
3 Series Round Stem Zinc Swivel Caster with 5 x 1.5 Black Phenolic Wheel and Top Lock Brake

Colson

3 Series Round Stem Zinc Swivel Caster with 5 x 1.5 Black Phenolic Wheel and Top Lock Brake

View CAD
SKU: 3.00514.309 MTG11 BRK1
Hurry up! Current stock:
Technical Data
Series 3 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.5
Wheel Type Phenolic
Tread Detail Phenolic Resin
Wheel Color Black
Bearing Type Roller Bearing
Fastening Type Round Stem
Fastening Size 1" x 2-1/2" (MTG11)
Capacity 400
Mount Height 6.1875
Swivel Radius 4.125
Wheel Face Crowned Tread
Temperature Range -45F to +250F
Hardness 90(+/-5) Shore D
Wheel Material Phenolic Resin
Wheel Category Phenolic
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
