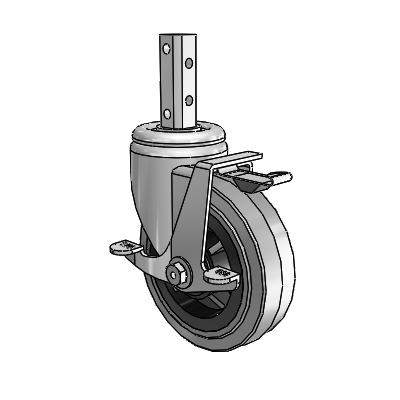

3 Series Square Stem Zinc Swivel Caster with 5 x 1.5 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake
3 Series Square Stem Zinc Swivel Caster with 5 x 1.5 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

Colson

3 Series Square Stem Zinc Swivel Caster with 5 x 1.5 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Top Lock Brake

View CAD
SKU: 3.00514.44 COND9 BRK1
Hurry up! Current stock:
Technical Data
Series 3 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.5
Wheel Type Performa Rubber (Flat/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Roller Bearing
Fastening Type Square Stem
Fastening Size 7/8'' Square x 2-1/2'' (Standard)
Capacity 280
Mount Height 6.1875
Swivel Radius 4.125
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
