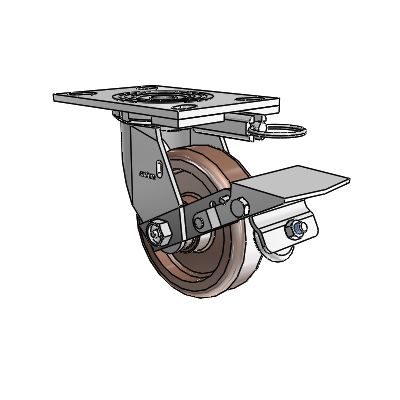

4 Series 1 1/2" Casters Top Plate Swivel Zinc with 5 x 1.5 Thermo Wheel and Tread Lock Brake
4 Series 1 1/2" Casters Top Plate Swivel Zinc with 5 x 1.5 Thermo Wheel and Tread Lock Brake

Colson

4 Series 1 1/2" Casters Top Plate Swivel Zinc with 5 x 1.5 Thermo Wheel and Tread Lock Brake

View CAD
SKU: 4.05109.819 HT MTG62 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series 1 1/2" Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.5
Wheel Type Thermo
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 6-1/4" x 4-1/2" (MTG2)
Capacity 600
Mount Height 6.5
Swivel Radius 6.625
Swivel Lock Bolt-On Hand Activated Swivel Lock (MTG62)
Hardness 85(+/-5) Shore D
SKU 4.05109.819 HT MTG62 BRK1
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
