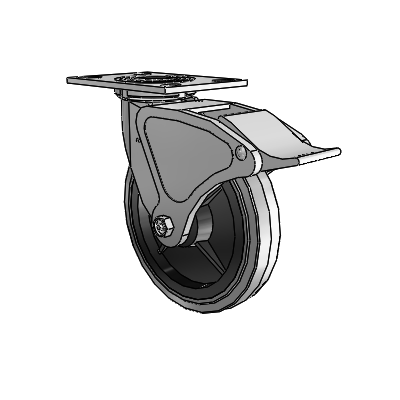

4 Series 1 1/2" Casters Top Plate Swivel Zinc with 8 x 1.5 Performa Rubber (Flat/Conductive) Wheel and Total Lock Brake
4 Series 1 1/2" Casters Top Plate Swivel Zinc with 8 x 1.5 Performa Rubber (Flat/Conductive) Wheel and Total Lock Brake

Colson

4 Series 1 1/2" Casters Top Plate Swivel Zinc with 8 x 1.5 Performa Rubber (Flat/Conductive) Wheel and Total Lock Brake

View CAD
SKU: 4.08199.445 COND MTG2 BRK4
Hurry up! Current stock:
Technical Data
Series 4 Series 1 1/2" Casters
Caster Type Swivel
Brake Type Total Lock (BRK4)
Finish Zinc
Wheel Diameter 8
Tread Width 1.5
Wheel Type Performa Rubber (Flat/Conductive)
Bearing Type Pedestal Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 6-1/4" x 4-1/2" (MTG2)
Capacity 350
Mount Height 9.5
Swivel Radius 8.5625
Hardness 75(+/-5) Shore A
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
