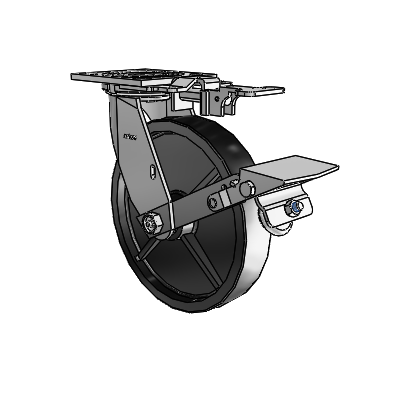

4 Series 1 1/2" Casters Top Plate Swivel Zinc with 8 x 1.5 Polyolefin Wheel and Tread Lock Brake
4 Series 1 1/2" Casters Top Plate Swivel Zinc with 8 x 1.5 Polyolefin Wheel and Tread Lock Brake

Colson

4 Series 1 1/2" Casters Top Plate Swivel Zinc with 8 x 1.5 Polyolefin Wheel and Tread Lock Brake

View CAD
SKU: 4.08199.815 MTG81 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series 1 1/2" Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Finish Zinc
Wheel Diameter 8
Tread Width 1.5
Wheel Type Polyolefin
Bearing Type Pedestal Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 600
Mount Height 9.5
Swivel Radius 8.75
Swivel Lock Foot Activated Swivel Lock (MTG81)
Hardness 70(+/-5) Shore D
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
