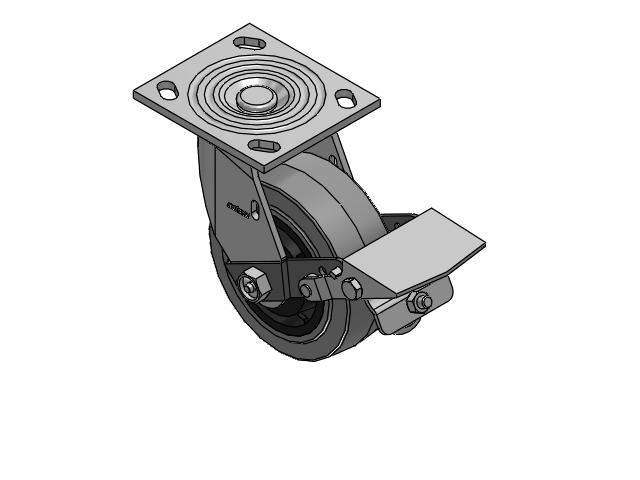

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 5 x 2 Performa Rubber (Flat/Conductive) Wheel and Tread Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 5 x 2 Performa Rubber (Flat/Conductive) Wheel and Tread Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 5 x 2 Performa Rubber (Flat/Conductive) Wheel and Tread Lock Brake

View CAD
SKU: 4.05109.459 COND MTG51 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 5
Tread Width 2
Wheel Type Performa Rubber (Flat/Conductive)
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 325
Mount Height 6.5
Swivel Radius 6.625
Swivel Lock Welded Hand Activated Swivel Lock (MTG51)
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Wheel Material Conductive Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
