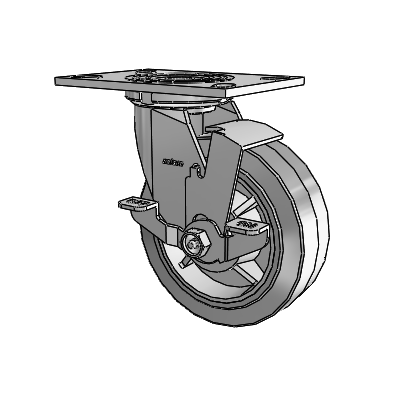

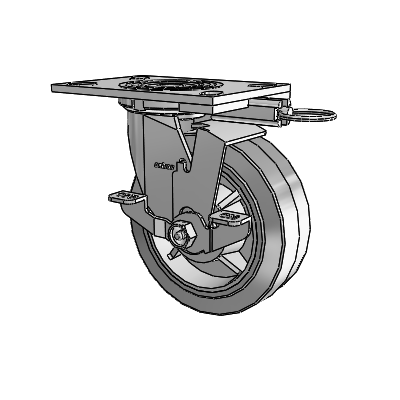

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 6 x 2 Performa Rubber (Flat/Grey) Wheel and Top Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 6 x 2 Performa Rubber (Flat/Grey) Wheel and Top Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 6 x 2 Performa Rubber (Flat/Grey) Wheel and Top Lock Brake

View CAD
SKU: 4.06109.4P5 MTG2 BRK7
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Top Lock (BRK7)
Wheel Diameter 6
Tread Width 2
Wheel Type Performa Rubber (Flat/Grey)
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 6-1/4" x 4-1/2" (MTG2)
Capacity 600
Mount Height 7.5
Swivel Radius 5
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Wheel Material High-Performance Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
