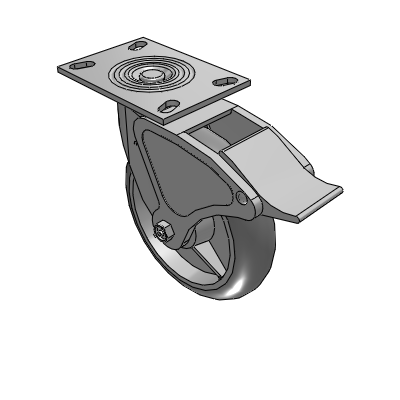

4 Series 2 Inch Wide Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round) Wheel and Total Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round) Wheel and Total Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round) Wheel and Total Lock Brake

View CAD
SKU: 4.08199.5P5 MTG2 BRK4
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Brake Type Total Lock (BRK4)
Wheel Diameter 8
Tread Width 2
Wheel Type Performa Rubber (Round)
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 6-1/4" x 4-1/2" (MTG2)
Capacity 600
Mount Height 9.5
Swivel Radius 8.5625
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
