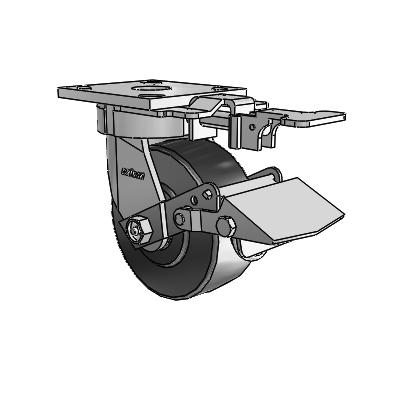

4 Series Kingpinless Casters Top Plate Swivel Caster with 5 x 2 Commander HD wheel and Tread Lock Brake
4 Series Kingpinless Casters Top Plate Swivel Caster with 5 x 2 Commander HD wheel and Tread Lock Brake

Colson

4 Series Kingpinless Casters Top Plate Swivel Caster with 5 x 2 Commander HD wheel and Tread Lock Brake

View CAD
SKU: 4.05189.5PN MTG61 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series Kingpinless Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 5
Tread Width 2
Wheel Type Commander HD
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 2000
Mount Height 6.5
Swivel Radius 7
Swivel Lock Kingpinless Hand Activated Swivel Lock (MTG61)
Wheel Material High-Impact Nylon
Wheel Category Nylon
Features
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
