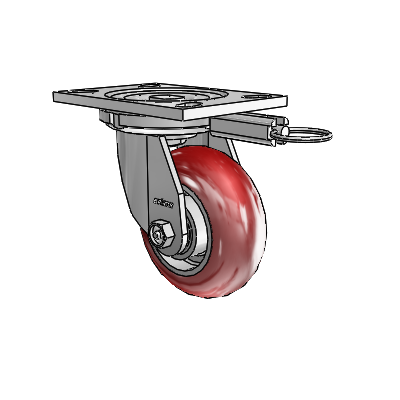

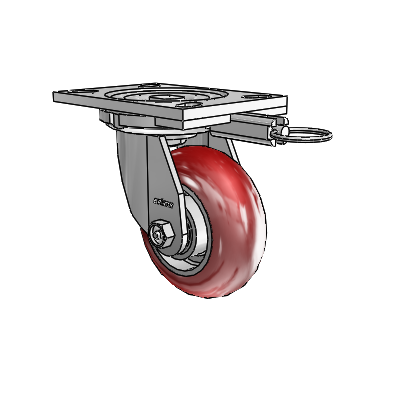

6 Series Casters Top Plate Swivel Zinc Caster with 5 x 2 Maroon on Silver CG Max Maroon Wheel
6 Series Casters Top Plate Swivel Zinc Caster with 5 x 2 Maroon on Silver CG Max Maroon Wheel

Colson

6 Series Casters Top Plate Swivel Zinc Caster with 5 x 2 Maroon on Silver CG Max Maroon Wheel

View CAD
SKU: 6.05209.9PC MTG52
Hurry up! Current stock:
Technical Data
Series 6 Series Casters
Caster Type Swivel
Finish Zinc
Wheel Diameter 5
Tread Width 2
Wheel Type CG Max Maroon
Tread Detail Polyurethane
Core Detail Aluminum
Wheel Color Maroon on Silver
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 6 1/4''x 4 1/2''
Bolt Hole Spacing 2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
Mounting Bolt Diameter 1/2"
Capacity 1000
Mount Height 6.5
Swivel Radius 4.3125
Swivel Lock Welded Hand Activated Swivel Lock (MTG52)
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 85(+/-5) Shore A
Wheel Material Ergonomic Polyurethane
Wheel Category Polyurethane
