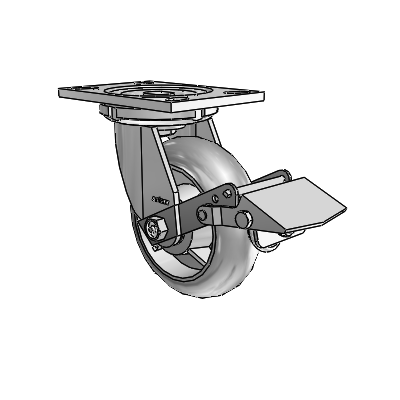

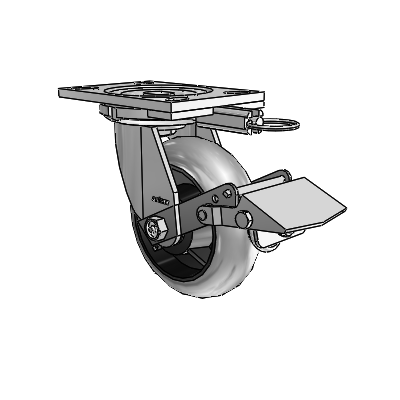

6 Series Casters Top Plate Swivel Zinc Caster with 6 x 2 Grey on Grey Performa Rubber (Round/Conductive) Wheel and Tread Lock Brake
6 Series Casters Top Plate Swivel Zinc Caster with 6 x 2 Grey on Grey Performa Rubber (Round/Conductive) Wheel and Tread Lock Brake

Colson

6 Series Casters Top Plate Swivel Zinc Caster with 6 x 2 Grey on Grey Performa Rubber (Round/Conductive) Wheel and Tread Lock Brake

View CAD
SKU: 6.06209.559 COND BRK1 MTG52
Hurry up! Current stock:
Technical Data
Series 6 Series Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Finish Zinc
Wheel Diameter 6
Tread Width 2
Wheel Type Performa Rubber (Round/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Grey
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 6 1/4''x 4 1/2''
Bolt Hole Spacing 2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
Mounting Bolt Diameter 1/2"
Capacity 410
Mount Height 7.5
Swivel Radius 7.125
Swivel Lock Welded Hand Activated Swivel Lock (MTG52)
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material High-Performance Rubber
Wheel Category Rubber
Has Brake Yes
Features
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
