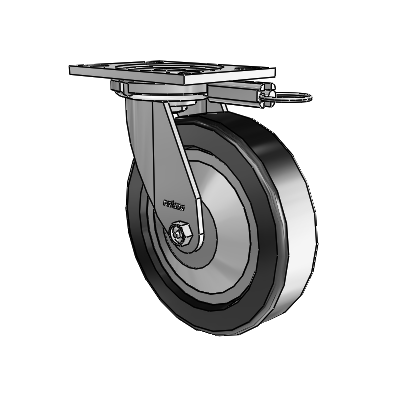

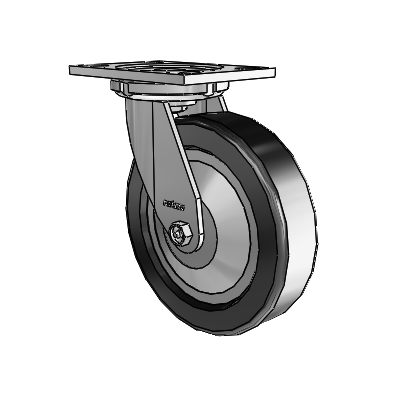

6 Series Casters Top Plate Swivel Zinc Caster with 8 x 2 Black Phenolic Wheel

Colson

6 Series Casters Top Plate Swivel Zinc Caster with 8 x 2 Black Phenolic Wheel

Name: 6 Series Casters Top Plate Swivel Zinc Caster with 8 x 2 Black Phenolic Wheel
Brand: Colson
SKU: 6.08299.339 MTG52
Availability: InStock

View CAD

SKU: 6.08299.339 MTG52

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	6 Series Casters
Caster Type	Swivel
Finish	Zinc
Wheel Diameter	8
Tread Width	2
Wheel Type	Phenolic
Tread Detail	Phenolic Resin
Wheel Color	Black
Bearing Type	Roller Bearing
Fastening Type	Top Plate Swivel
Fastening Size	6 1/4''x 4 1/2''
Bolt Hole Spacing	2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
Mounting Bolt Diameter	1/2"
Capacity	1400
Mount Height	9.5
Swivel Radius	6.25
Swivel Lock	Welded Hand Activated Swivel Lock (MTG52)
Wheel Face	Crowned Tread
Temperature Range	-45F to +250F
Hardness	90(+/-5) Shore D
Wheel Material	Phenolic Resin
Wheel Category	Phenolic
