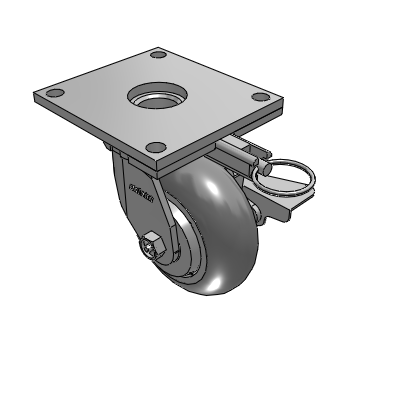

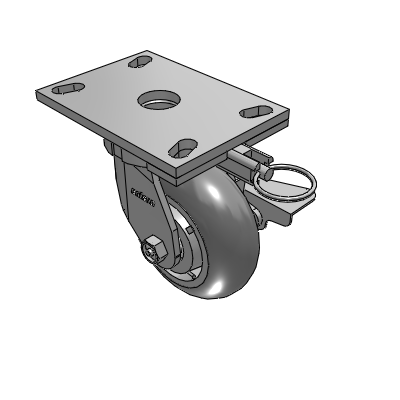

6 Series Kingpinless Casters Top Plate Swivel Caster with 5 x 2 Performa Rubber (Round) Wheel and Side Lock Brake
6 Series Kingpinless Casters Top Plate Swivel Caster with 5 x 2 Performa Rubber (Round) Wheel and Side Lock Brake

Colson

6 Series Kingpinless Casters Top Plate Swivel Caster with 5 x 2 Performa Rubber (Round) Wheel and Side Lock Brake

View CAD
SKU: 6.05289.559 MTG64 BRK3 TG1
Hurry up! Current stock:
Technical Data
Series 6 Series Kingpinless Casters
Brake Type Side Lock (BRK3)
Wheel Diameter 5
Tread Width 2
Wheel Type Performa Rubber (Round)
Bearing Type Roller Bearing
Thread Guard Metal (TG1)
Fastening Type Top Plate Swivel
Fastening Size 5-1/2" x 5" (MTG4)
Capacity 425
Mount Height 6.5
Swivel Radius 5
Swivel Lock Kingpinless Hand Activated Swivel Lock (MTG64)
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
