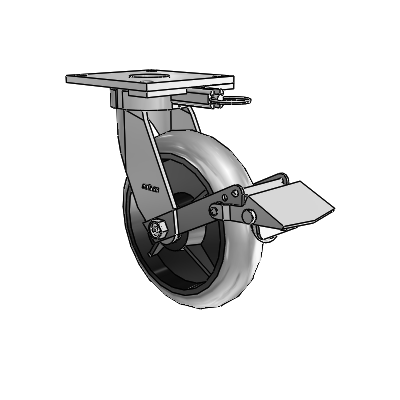

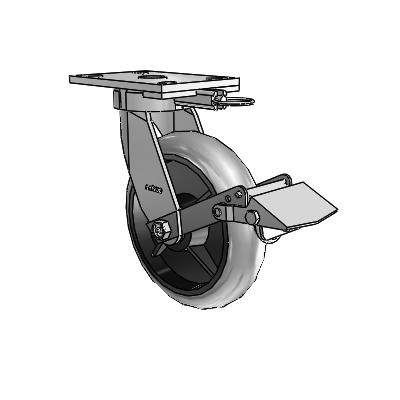

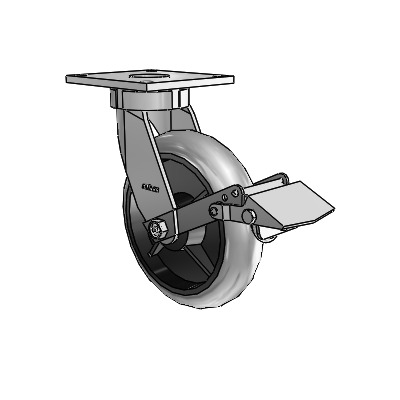

6 Series Kingpinless Casters Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round/Conductive) Wheel and Tread Lock Brake
6 Series Kingpinless Casters Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round/Conductive) Wheel and Tread Lock Brake

Colson

6 Series Kingpinless Casters Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round/Conductive) Wheel and Tread Lock Brake

View CAD
SKU: 6.08289.559 COND MTG64 BRK1
Hurry up! Current stock:
Technical Data
Series 6 Series Kingpinless Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 8
Tread Width 2
Wheel Type Performa Rubber (Round/Conductive)
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 5-1/2" x 5" (MTG4)
Capacity 500
Mount Height 10.125
Swivel Radius 9.625
Swivel Lock Kingpinless Hand Activated Swivel Lock (MTG64)
Wheel Material Conductive Rubber
Wheel Category Rubber
Features
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
