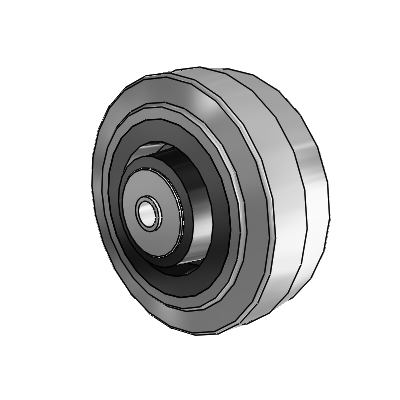

Performa Conductive Rubber Wheels Flat Grey Tread Polyolefin 4 x 1.5 with Pedestal Precision Ball Bearing
Performa Conductive Rubber Wheels Flat Grey Tread Polyolefin 4 x 1.5 with Pedestal Precision Ball Bearing

Colson

Performa Conductive Rubber Wheels Flat Grey Tread Polyolefin 4 x 1.5 with Pedestal Precision Ball Bearing

View CAD
SKU: 3.00004.445 COND
Hurry up! Current stock:
Technical Data
Series Performa Conductive
Wheel Diameter 4
Tread Width 1.5
Wheel Type Performa Conductive Rubber Wheels
Tread Detail Flat Grey Tread
Wheel Color Grey
Core Detail Polyolefin
Core Color Grey
Bearing Type Pedestal Precision Ball
Bearing ID 0.75
Hub Length 1.875
Capacity 255
Temperature Minimum -45F
Temperature Maximum +180F
Bore ID 1.1875
Wheel Face Flat Tread
Hardness 75(+/-5) Shore A
Spanner Bushing Bore 0
Spanner Bushing Length 0
Wheel Material Conductive Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
