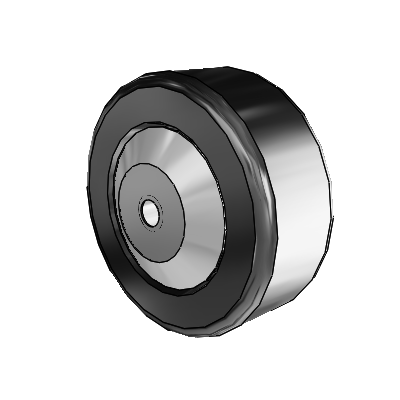

Phenolic Phenolic Resin 5 x 2 Wheel with Pedestal Precision Ball Bearing

Colson

Phenolic Phenolic Resin 5 x 2 Wheel with Pedestal Precision Ball Bearing

Name: Phenolic Phenolic Resin 5 x 2 Wheel with Pedestal Precision Ball Bearing
Brand: Colson
SKU: 5.00005.335 TG1
Availability: InStock

View CAD

SKU: 5.00005.335 TG1

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	Phenolic
Wheel Diameter	5
Tread Width	2
Wheel Type	Phenolic
Tread Detail	Phenolic Resin
Wheel Color	Black
Core Detail	Phenolic Resin
Core Color	Black
Bearing Type	Pedestal Precision Ball
Bearing ID	0.5
Hub Length	2.1875
Capacity	1000
Temperature Minimum	-45F
Temperature Maximum	+250F
Bore ID	1.1875
Wheel Face	Crowned Tread
Thread Guard	Metal (TG1)
Hardness	90(+/-5) Shore D
Spanner Bushing Bore	0
Spanner Bushing Length	0
Wheel Material	Phenolic Resin
Wheel Category	Phenolic
