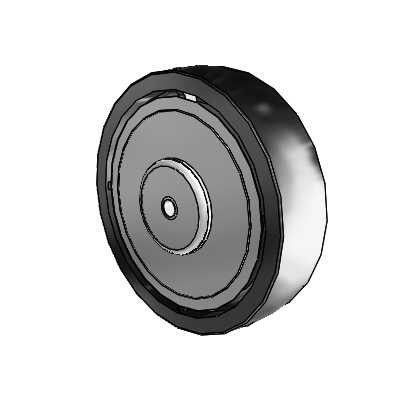

Polyolefin 8 x 2 Wheel with Pedestal Precision Ball Bearing

Polyolefin 8 x 2 Wheel with Pedestal Precision Ball Bearing

Colson

Polyolefin 8 x 2 Wheel with Pedestal Precision Ball Bearing

View CAD

SKU: 5.00008.835 TG1

Hurry up! Current stock:

Current Stock:

Quantity:

Series	Polyolefin
Wheel Diameter	8
Tread Width	2
Wheel Type	Polyolefin
Tread Detail	Polyolefin
Wheel Color	Black
Core Detail	Polyolefin
Core Color	Black
Bearing Type	Pedestal Precision Ball
Bearing ID	0.5
Hub Length	2.1875
Capacity	900
Temperature Minimum	-45F
Temperature Maximum	+180F
Bore ID	1.1875
Wheel Face	Crowned Tread
Thread Guard	Metal (TG1)
Hardness	70(+/-5) Shore D
Spanner Bushing Bore	0
Spanner Bushing Length	0
Wheel Material	Polyolefin
Wheel Category	Polyolefin

ColsonCatalog2020_R3_088_089.pdf

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
