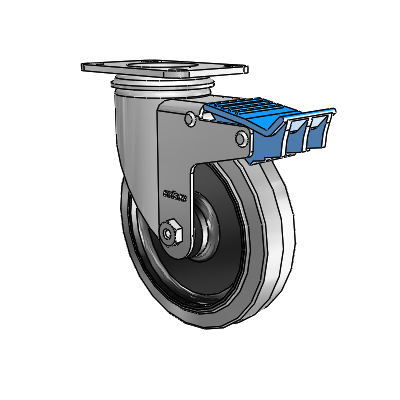

2 Series Casters Top Plate Swivel Zinc Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Directional Lock Brake
2 Series Casters Top Plate Swivel Zinc Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Directional Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc Caster with 5 x 1.25 Grey on Black Performa Rubber (Flat/Conductive) Wheel and Directional Lock Brake

View CAD
SKU: 2.05156.445 COND
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Directional Lock
Finish Zinc
Wheel Diameter 5
Tread Width 1.25
Wheel Type Performa Rubber (Flat/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Top Plate Swivel
Fastening Size 3-5/8'' x 2-1/2'' (Standard)
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 250
Mount Height 6.1875
Swivel Radius 4.9375
Wheel Face Flat Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
