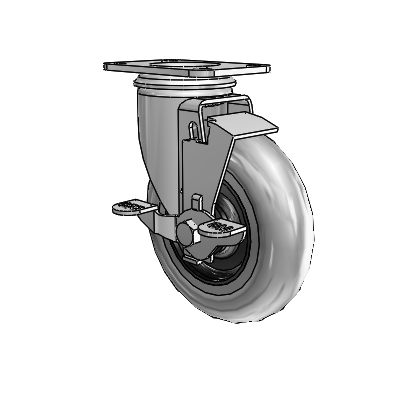

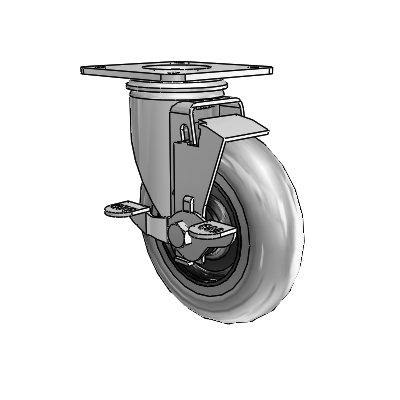

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel and Top Lock Brake
2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel and Top Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc Swivel Caster with 5 x 1.3125 Grey on Black Performa Rubber (Round/Conductive) Wheel and Top Lock Brake

View CAD
SKU: 2.05256.565 COND MTG27 BRK1 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 1.3125
Wheel Type Performa Rubber (Round/Conductive)
Tread Detail Performa Rubber
Core Detail Polyolefin
Wheel Color Grey on Black
Bearing Type Ball
Fastening Type Top Plate Swivel
Fastening Size 4-3/8'' x 3-3/4'' (MTG27)
Bolt Hole Spacing 2-5/8" to 3" x 3" to 3-5/8"
Mounting Bolt Diameter 3/8"
Capacity 250
Mount Height 6.1875
Swivel Radius 3.9375
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 75(+/-5) Shore A
Wheel Material Conductive Rubber
Wheel Category Rubber
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
