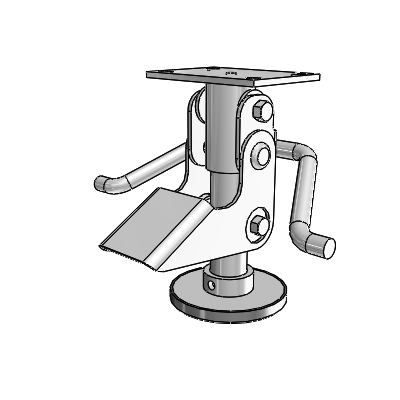

Colson 2 Series, Colson 3 Series Floor Locks, 5.1719 Retracted Height, 6.2188 Extended Height
Colson 2 Series, Colson 3 Series Floor Locks, 5.1719 Retracted Height, 6.2188 Extended Height

Colson

Colson 2 Series, Colson 3 Series Floor Locks, 5.1719 Retracted Height, 6.2188 Extended Height

Colson Floor Locks are designed for use on level surfaces and are not recommended for use on inclined surfaces. It is important to select a floor lock model that clears the floor when retracted (see Retracted Height). To adapt a floor lock brake to your present equeipment, select a model with an Extended Height 1/16" to 1/4" greater than the overall height of your caster.View CAD
SKU: 9.06002.05
Hurry up! Current stock:
Technical Data
Series Floor Locks
Recommended Caster Series Colson 2 Series, Colson 3 Series
Retracted Height 5.1719
Extended Height 6.2188
Attachment Size 2-1/2" x 3-5/8"
Mounting Bolt Size 5/16"
Bolt Hole Spacing 1-3/4" x 2-7/8" to 3"
Finish Zinc Plating
Accessory Height Variable
Overall Width 8
Attachment Type Top Plate
SKU 9.06002.05
