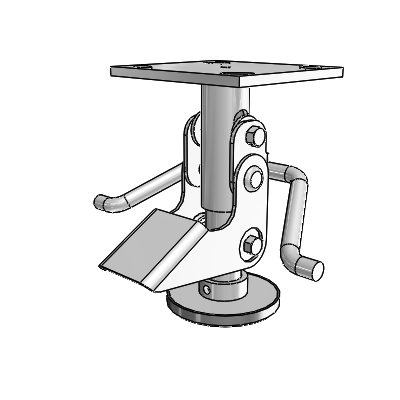

Colson 3 Series, Colson 4 Series, Colson 6 Series Floor Locks, 5.5469 Retracted Height, 6.6719 Extended Height
Colson 3 Series, Colson 4 Series, Colson 6 Series Floor Locks, 5.5469 Retracted Height, 6.6719 Extended Height

Colson

Colson 3 Series, Colson 4 Series, Colson 6 Series Floor Locks, 5.5469 Retracted Height, 6.6719 Extended Height

Colson Floor Locks are designed for use on level surfaces and are not recommended for use on inclined surfaces. It is important to select a floor lock model that clears the floor when retracted (see Retracted Height). To adapt a floor lock brake to your present equeipment, select a model with an Extended Height 1/16" to 1/4" greater than the overall height of your caster.View CAD
SKU: 9.06253.05
Hurry up! Current stock:
Technical Data
Series Floor Locks
Recommended Caster Series Colson 3 Series, Colson 4 Series, Colson 6 Series
Retracted Height 5.5469
Extended Height 6.6719
Attachment Size 4" x 4-1/2"
Mounting Bolt Size 3/8"
Bolt Hole Spacing 2-5/8" to 3" x 3" to 3-5/8"
Finish Zinc Plating
Accessory Height Variable
Overall Width 8
Attachment Type Top Plate
Features
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
